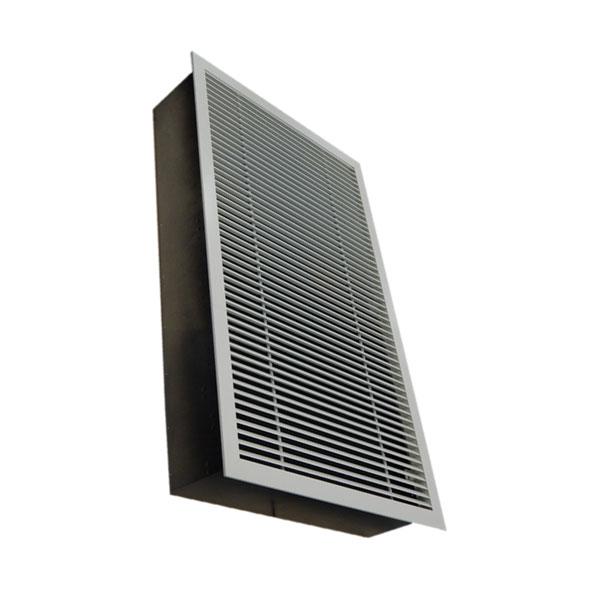

AOV Smoke Shaft Damper Ventilation 1mē Free Area Compliant 1000x1400mm & Grille

AOV Smoke Shaft Damper Ventilation 1mē Free Area Compliant 1000x1400mm & Grille
  Zoom
 AOV Smoke Shaft Damper Ventilation 1mē Free Area Compliant 1000x1400mm & GrilleAOV Smoke Shaft Damper Ventilation 1mē Free Area Compliant 1000x1400mm & Grille


Our Price:  £1,495.00(Inc. 20% VAT)
+

Availability:



In stock, immediate despatch

Dimensions:  1000mm x 1400mm

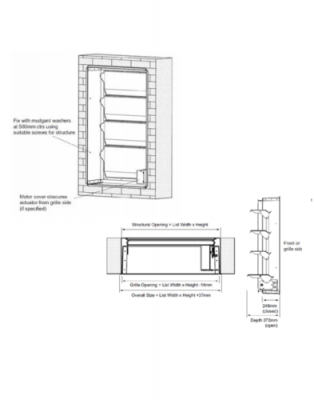

Wall Mounted Smoke Evacuation Damper
1.5 mm Galvanised steel construction
Motor open or motor closed operation
Fire tested to EN1366 Pt 2
Low leakage rate
High Free area design
1000mm x 1400mm (Damper 1.0m2 )
Weight: 39kg per SQ/M
Damper & Mounting Frame Construction: 1.5mm cold reduced galvanised steel (BS EN 10142: 1991)
Blades: 1.0mm thick, 100mm-300mm wide cold reduced galvanised steel (BS EN 10142: 1991)
Motor Drive: Belimo BLE drive open/close

The Series 54 smoke damper range has been designed to satisfy smoke ventilation applications and is particularly suited for smoke evacuation shafts and risers in multi storey buildings. A multi, parallel linked blade smoke damper the Series 54 is manufactured from robust 1.5 mm galvanised steel and is fully tested to the requirements of EN1366 Pt 2 for 1 hour. Usefully the damper combines both a low leakage rate, when closed, with a high free area, when open, to support high smoke evacuation rates. All Series 54 dampers are fitted with a Belimo actuator to offer a powered motor open/close actuation. Series 54 has been designed to provide both a practical and aesthetic solution. We also include a Fascia grille along with the damper.
Other sizes are available, please message us for any inquiries.
