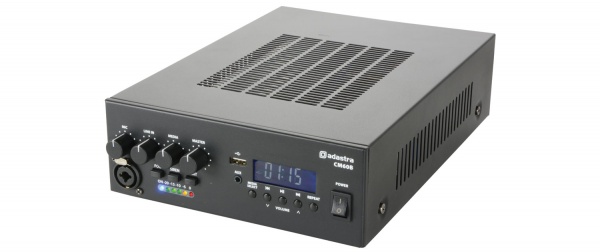

Adastra CM60B 60W Compact 100V 8ohms Mixer Amp Amplifier Bluetooth USB PA System
100V mixer-amplifiers with USB audio player, FM tuner and Bluetooth receiver in a half width 2U housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Designed as a versatile solution for small to medium PA installations.
- Bluetooth connectivity
- Integral USB player and FM tuner
- 100V line or 8 Ohms operation
- 60W
Specifications
- Power supply 110/230Vac, 50/60Hz (IEC)
- DC power 12Vdc option (screw terminals)
- Input impedance : mic 1.8k Ohms
- THD <1.0%
- Audio source USB player, FM tuner and Bluetooth receiver
- Bluetooth version 2.0
- Controls Mic, line, media, master volume
- Line input 2 x RCA
- Line output 2 x RCA
- Speaker : outputs 100V / 8 Ohms / COM terminals
- Antenna connection F connector
- Dimensions 329 x 210 x 84mm
- Power : output 60Wrms
- Microphone : inputs Combo XLR/6.3mm jack
- Frequency response : mic 93Hz - 15kHz
- Frequency response : line 91Hz - 48kHz
- Input sensitivity : mic -50.1dB
- Input sensitivity : line -8.8dB
- Signal to noise ratio : mic 82dB
- Signal to noise ratio : line 90dB
- Max. attenuation: mic 88dB
- Weight 4.7kg
