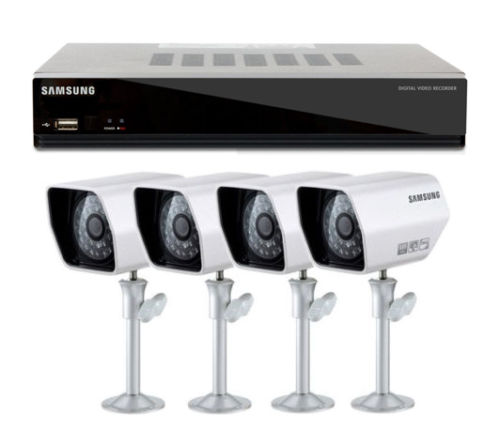

SAMSUNG SDE-3003P
· Video Inputs: 4 UTP Line (CH1-CH3
· Video Resolution: 704 x 480 NTSC
· Operating System: Linux
· Recording Compression: H.264
· Mode: Manual, Schedule, Event
· Overwrite Modes: Continuous
· Pre-event: Off / 5 / 10 / 20 / 30 sec
· Post-event: Off / 5 / 10 / 20 / 30 sec; 1 / 3 / 5 / 10 / 20 min; 1 / 2 / 3 / 4 / 5 / 6 hour
· Search Mode: Date/time, Event, Backup, Motion
· Stream: H.264 (CIF)
· Max. No. of Remote Users: Search (3) / Live Unicast (10) / Live Multicast (20)
· Protocol Support: TCP/IP, DHCP, PPPoE, SMTP, NTP, LIGHTTPD & UDP, DDNS, RTP RTSP
· Monitoring: Smart Viewer, Webviewer, Mobile Viewer
· Internal HDD: 500GB SATA HDD
· USB (Backup): 2 USB Ports
· File Format: AVI, SEC, DVR
· Audio Inputs/Output: Terminal 4 inputs (NO/NC) / Terminal 1 relay outputs(NO/NC)
· Alarm Remote notification: Notification via e-mail
· Ethernet: 1 RJ-45 10/100/1000 Base-T
· USB: USB 2.0, 2 ports
Bullet Camera(s):
· Day/Night - IR LED Day & Night Camera
· Power Source - Voltage DC 12V
· Image Device - CCD
· Weather Resistant - IP66
· Resolution - 600TVL
· S/N Ratio - 50db
· Signal Output - Composite Video : MINI DIN TYPE (JACK)
· Lens - Focal Length : 3.8mm Aperture(f) : 2.0
· Light Condition - Light Sensor Auto, Switching IR LED Control
· Digital Noise Reduction - V
· Body - Metal
· IR LED - 30 EA
· Cables may or may not be included
