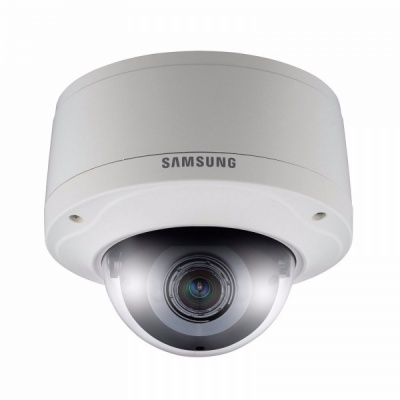

SAMSUNG SCV-2060P 1/3'' SUPER HAD CCD II CCTV DOME CAMERA 600TVL IP66 SSDR

The SCV-2060 high resolution vandal dome camera provides a horizontal resolution of 600TV lines for exceptional imaging.

With a low light level of 0.15Lux, it forms noise-free images even in the darkest conditions and the extra-sturdy aluminium chassis provides unparalleled durability.

The built-in 2.4x varifocal lens (2.5 ~ 6mm) provides an optimal monitoring range in any installation environment.

This camera features enhanced user-friendly options including a Multi-language OSD, coaxial control compatibility and SSDR.

Some of the features of this product are as follows -

• High resolution of 600TV lines(color), 700TV lines(B/W)
• Min. illumination 0.15Lux(color), 0.001Lux(B/W)
• 2.4x(2.5~6mm) V/F lens, true day & night(ICR), MD, SSNRⅢ (3D+2D)
• IP66, coaxial control, (Pelco-C ), RS-485, dual power
• The technical specifications for this product are as follows -
• Imaging Device - 1/3" Super HAD CCD II
• Total Pixels - 795(H) x 596(V)
• Effective Pixels - 752(H) x 582(V)
• Scanning System - 2:1 Interlace
• Synchronization - Internal / Line lock
• Frequency - H: 15.625KHz / V : 50Hz
• Horizontal Resolution - Color : 600TV lines, B/W : 700TV lines
• Min. Illumination - Color : 0.15Lux@F1.2 (50IRE), 0.0003Lux (Sens-up, 512x), B/W : 0.001Lux@F1.2 (50IRE), 0.000002Lux (Sens-up, 512x)
• S / N Ratio - 52dB (AGC off, Weight on)
• Video Output - CVBS : 1.0 Vp-p / 75Ω composite
• Focal Length - (Zoom Ratio) 2.5 ~ 6mm (2.4x)
• Max. Aperture - Ratio 1 : 1.2(Wide) ~ 1.7(Tele)
• Angular Field of View - H : 103.4˚(Wide) ~ 46.6˚(Tele) / V : 77.6˚(Wide) ~ 35.1˚(Tele)
• Lens Type - DC auto iris
• Mount Type - Board type
• Pan Range - 0° ~ 355°
• Tilt Range - 0° ~ 90°
• Rotate Range - 0° ~ 355°
• Camera Title - Off / On (Displayed 15 characters)
• Day & Night Auto - (ICR) / Color / B/W
• Backlight Compensation - BLC / HLC / Off
• Contrast Enhancement - SSDR (Off / On)
• Digital Noise Reduction - SSNRIII (Off / On)
• Digital Image Stabilization - Off / On
• Motion Detection - Off / On (8 programmable zones)
• Privacy Masking - Off / On (12 programmable zones)
• Sens-up (Frame Integration) - 2x ~ 512x
• Gain Control - Off / Low / High
• White Balance - ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
• Electronic Shutter Speed - 1/50 ~ 1/120,000sec
• Digital Zoom - Off / On (1x ~ 16x)
• Reverse H-Rev - (Off / On) / V-Rev (Off / On)
• Communication - Coaxial control (SPC-300 compatible)
• Protocol - Coax : Pelco-C (Coaxitron)
• Operating Temperature / Humidity - -50°C ~ +50°C (-58°F ~ +122°F) / Less than 90% RH
• Ingress Protection - IP66 Grade
• Input Voltage / Current - Dual (24V AC & 12V DC ±10%), Built-in fan & heater (24V AC ±10%)
• Power Consumption - Max. 3.8W / Max. 7.8W (Fan & heater on)
• Color / Material - Ivory / Aluminum, Plastic (Dome cover : Clear)
• Dimensions (WxH) - Ø160.0 x 134.5mm

• Weight - 1.28Kg
