AOV Vent Smoke Extractor Ventilation Fan High Temp w/ Control Panel Kit
  Zoom

AOV Vent Smoke Extractor Ventilation Fan High Temp w/ Control Panel Kit



Availability



No stock


Part Number:  AOV11
Brand:  HDSDI Group

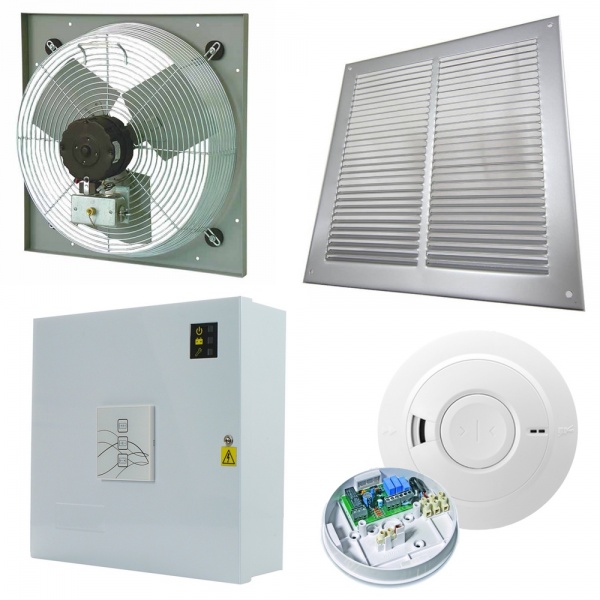

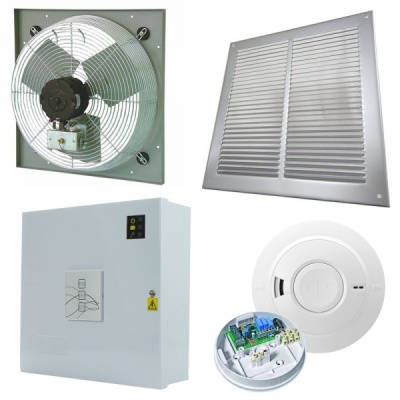

Whats included:

1x 300mm x 300mm Metal Steel Ventilation Grill
1x ATEX Rated Extractor Fan (300mm blade version)
1x Aico Mains Powered Smoke Alarm (with backup battery)
1x Aico Relay Base
1x AOV Control Panel

Extractor fan description:

Atex rated Explosion Proof (Ex)Heavy Duty Industrial Ventilating Extractor fan With the grill and the louver Shutter for safety & to stop the draft coming from outside , the louver shutter only opens when the fan is extracting the air. The fans are designed for industrial, commercial and farming application with the robust metal construction. The application of the fans are in Hazardous location required in any area where the presence of flammable gases, vapors or finely pulverized to dust in the atmosphere , The fans are very commonly used at spray booths and factories to extract the flammable fumes.

Tech spec
size -12 inches (300mm)
voltage 220-240v
frequency 50-60Hz
speed – 1400
watts - 120W
Extraction capacity - 1800 m3/h

AOV control panel description:

230V Smoke Ventilation AOV Windows Control Panel, Detection with UPS backup
This smoke control panel has been especially designed and developed for smoke ventilation systems, and can be used for standalone operation

The innovative design provides

Mains supply
Backup secondary supply
Isolation breaker
Dry contacts
Override operation open/close/stop
Metal housing

Other Features

• Power indication
• Interface for fire panel connections
• labelled for easy use
• Deep discharge protection.
• Current limiting.
• Short circuit protection.
• Mains transient protection.
• Compliant to EMC EN61000-6-1 & 3
• Designed to comply with: EN12101 - 9 & 10 : 2005, Smoke and heat control systems
