F300 AOV Smoke Ventilation Ø315mm Extractor Fan, 3 Phase w/ Control Panel & ATS
  Zoom

F300 AOV Smoke Ventilation Ø315mm Extractor Fan, 3 Phase w/ Control Panel & ATS

Our Price:  £4,495.00

Availability



In stock


Part Number:  3 Phase Fan

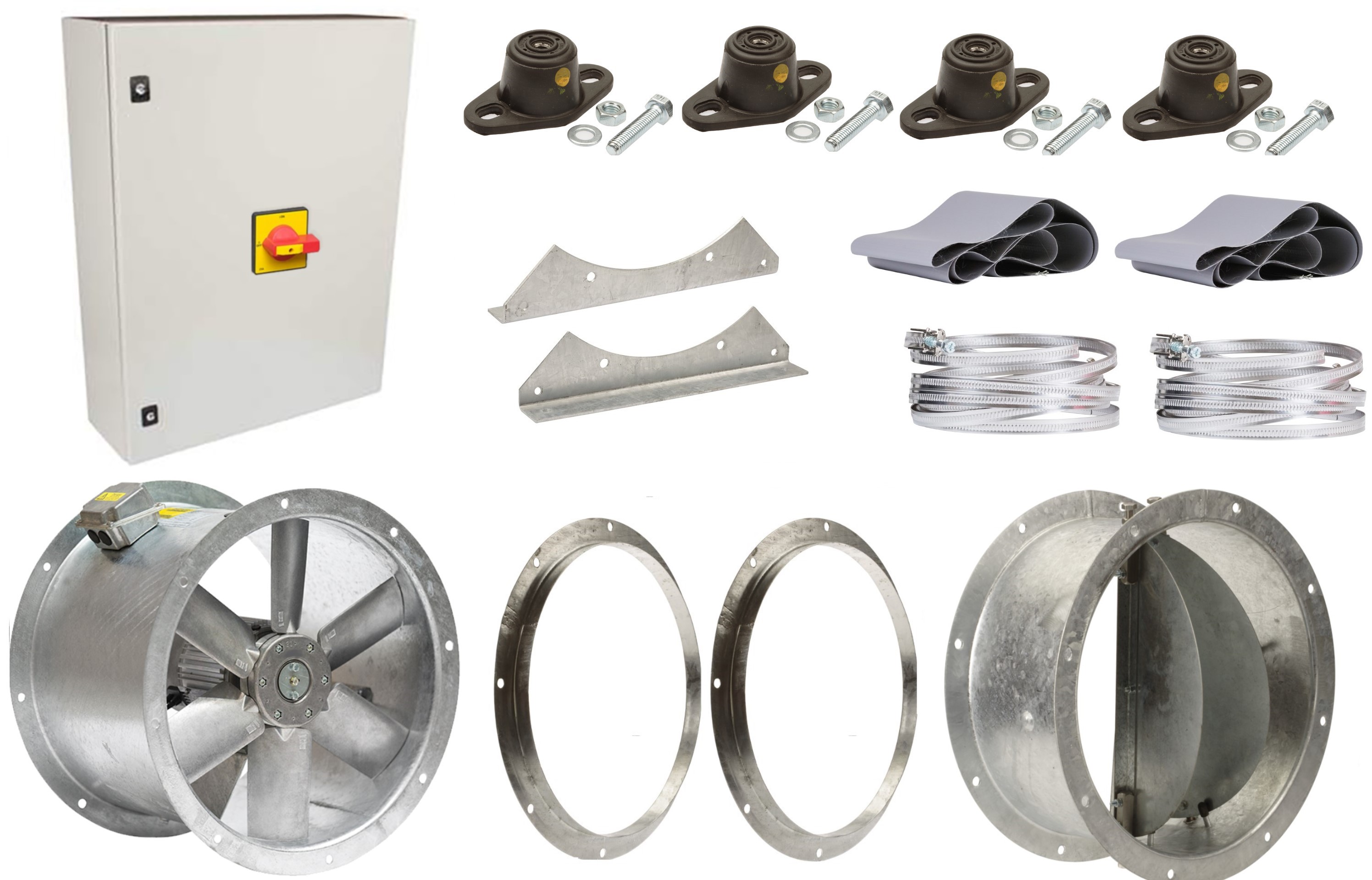

Package includes:

1* Ø315mm Axial Flow Fan
1* Control Panel
1* Flanged Damper
4* Vibration Mount
2* Mounting Foot
2* Flexible connector
2* Matching Flange

Catalogue Code: LCS031J2-A6/10
Description: Long-Cased Smoke
Nominal Diameter (mm): 315
Hub Size (mm): 131
Impeller: Axial, Aluminium

Volume (m'/s): 0.45
Static Pressure (Pa): 150
ABS/LL Power (kW): 0.22/0.25
Fan Speed (r/min): 2880
FMEG/SFP: 27/0.90
Sound Pressure (dB(A)):59@3m
Fan Weight (kg): 24.1
Motor Power: 1.10kW
Electrical Supply: 400V 3ph 50Hz
FLC/Start (A): 2.35 / 17.51 (DOL)
Motor Frame: 80
Motor Type: F300 (IE3)
Motor Speed: 2 Pole


Smoke fans to EN12101-3:2019 (2797-CPR-493001) suitable for once-only use at 300°C for 2 hours as well as

continuous use at ambient (subject to ErP requirements). Motor Class H - TEAO - IP55. Construction: Casing - mild
steel hot-dip galvanised; Impeller - aluminium.
It is assumed that the fans will be floor mounted, with horizontal airflow, all ancillaries have been selected accordingly
Fans have been selected for run & standby in parallel with a non-return damper fitted to limit re-circulation.
